Data Manager Ⅱ

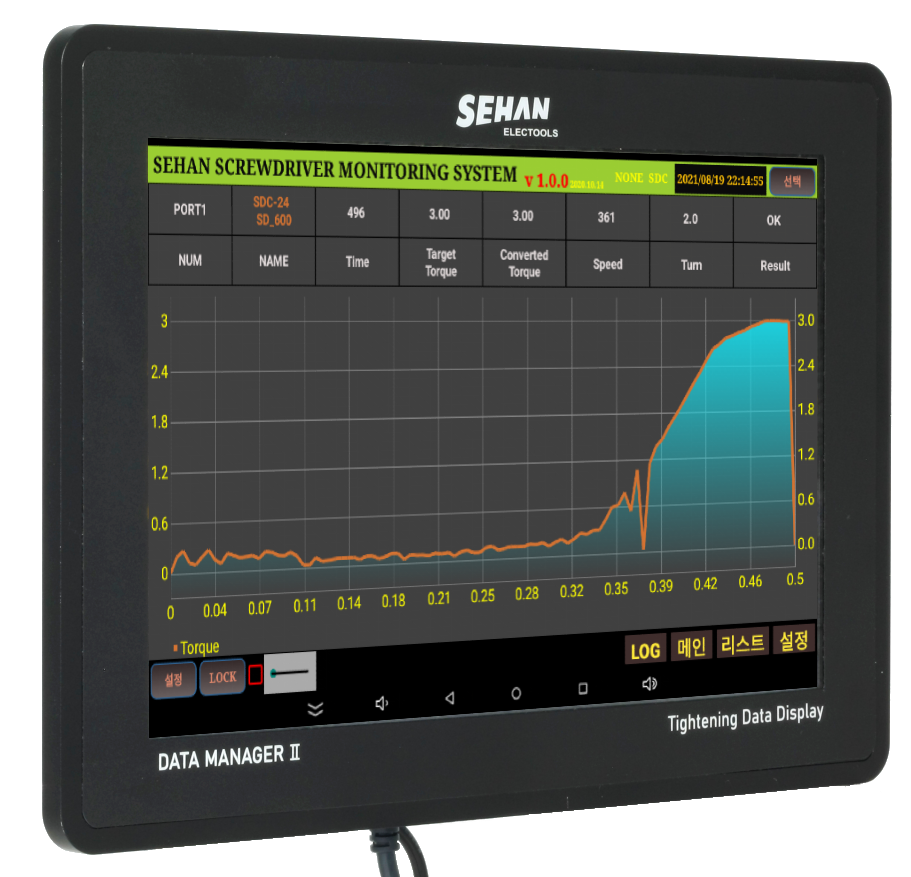

- Data Manager Ⅱ is a 10.1 inch touch screen to monitor tightening data.
It allows real-time tightening data monitoring(torque, speed, turns, time etc.)
for digital torque control scrwedrivers. You can also easily set parameters
(torque, speed etc.) with this device. Moreover, data shown on the screen
can be saved to the SD memory card, converted to an MS Excel format.

Features

- Monitor the work by changing display mode to work mode and graph mode

- Select the tightening data you want to display on the work mode and monitor
- Save and trace the tightening data by either in numbers or graphs

- LOG is saved under automatically created folders by date according to the connected port

- Up to 2 units of SH, SD and HD Series can be connected simultaneously
- Torque, speed, min/max turns, torque compensation is adjustable in the setting mode

Specification

Description	Specification
Input power	DC12V, 3A
LCD	10.1 inch IPS screen with 10 point capacitive touch(optional)
Processor	Allwinner A64 quad core processor, clocked 1.6GHz (RK3188/RK3288/RK3399 optional)
Operating system	Android 6.0
Internal memory	2GB RAM / 16GB ROM
External memory	1 x SD memory slot, Max 32GB

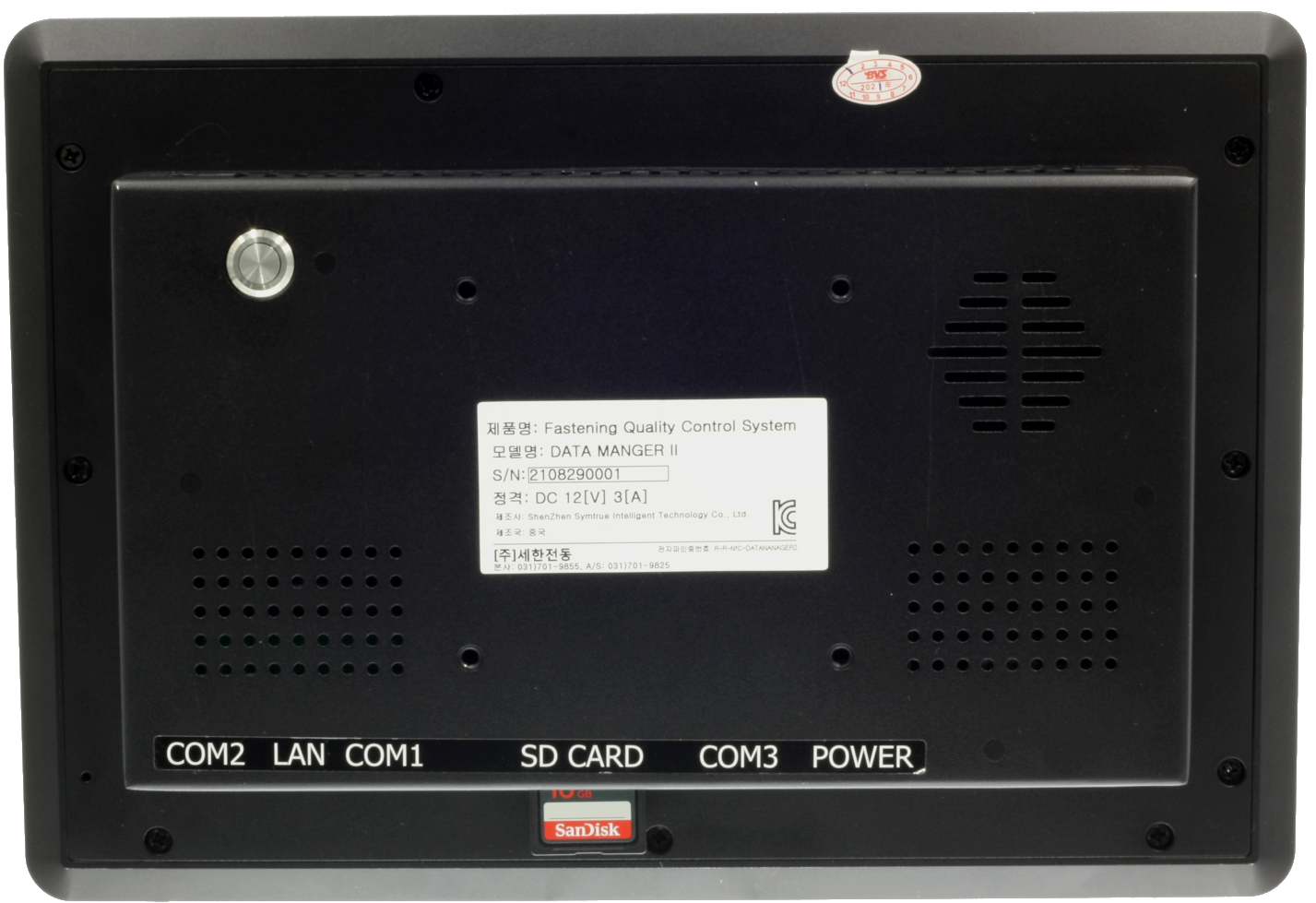

Com port	3 x USB 2.0 1 x mini USB (For firmware upgrades) 1 x Ethernet (10/100 LAN)
Other functions	Speaker(3Wx2), AUX
Capacity	Maximum 2 screwdrivers

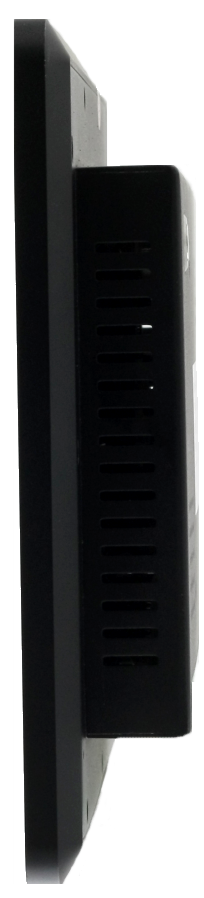

Dimensions

Screen Layout

[Data ManagerⅡfor HD series]

[Data ManagerⅡfor for SD series]

[Data Manager for SH series]

Accessories

[USB to RS232 converter] [Adaptor] [Adaptor plug]

[Bracket] [SD memory card] [RS232 9pin serial cable]
